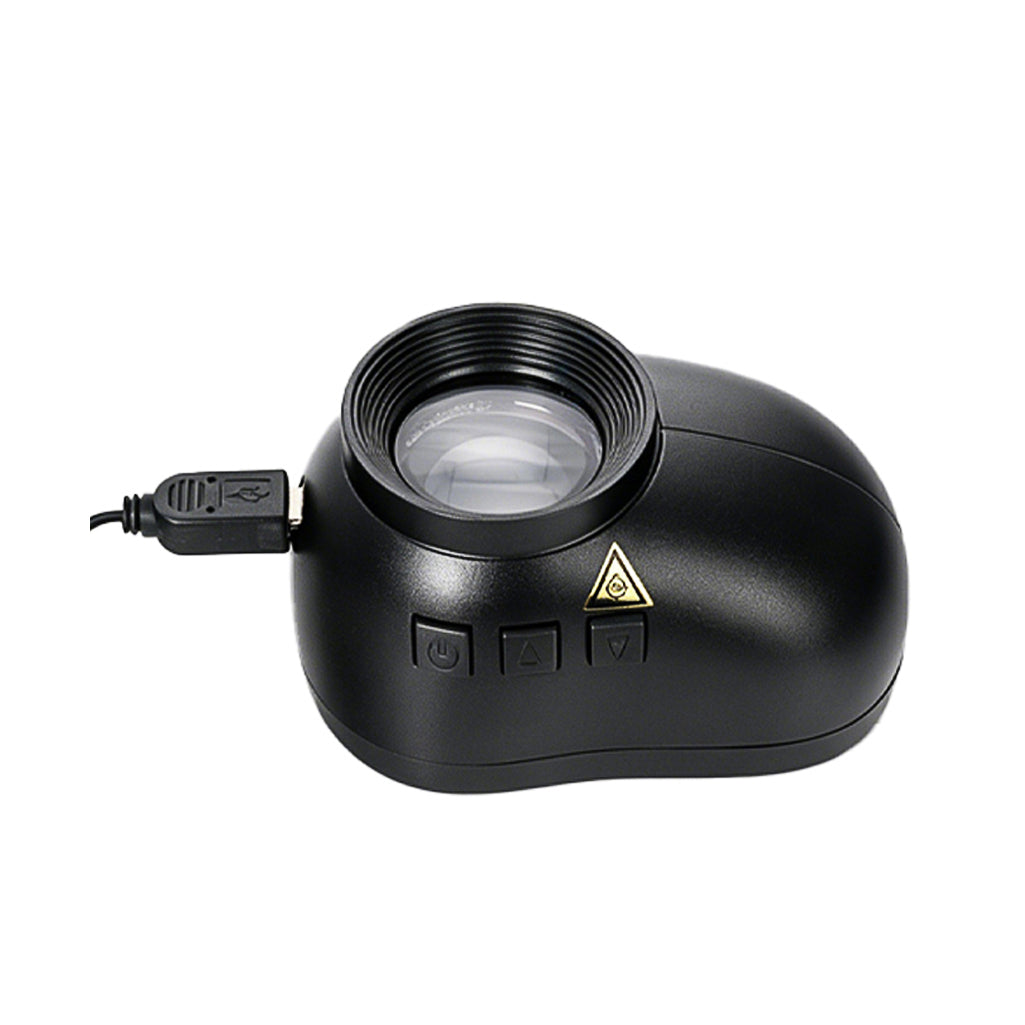

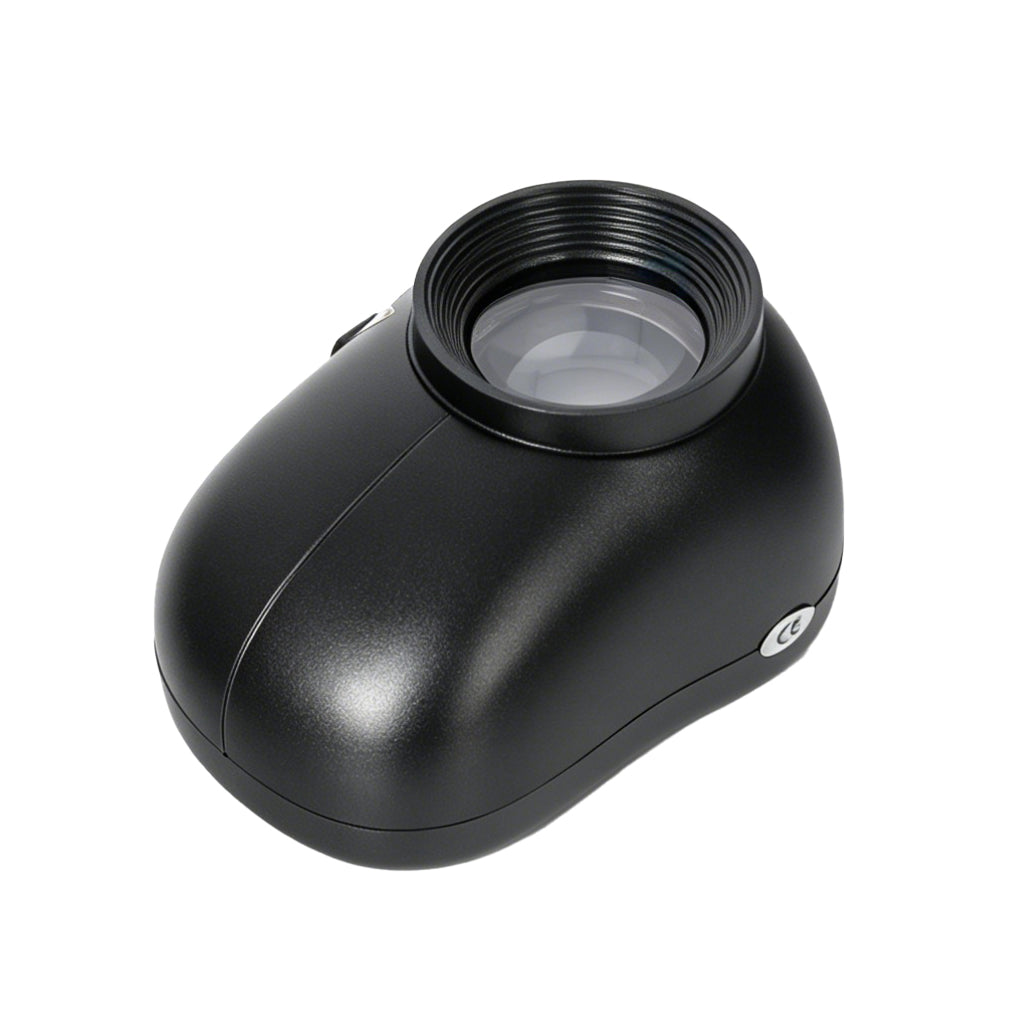

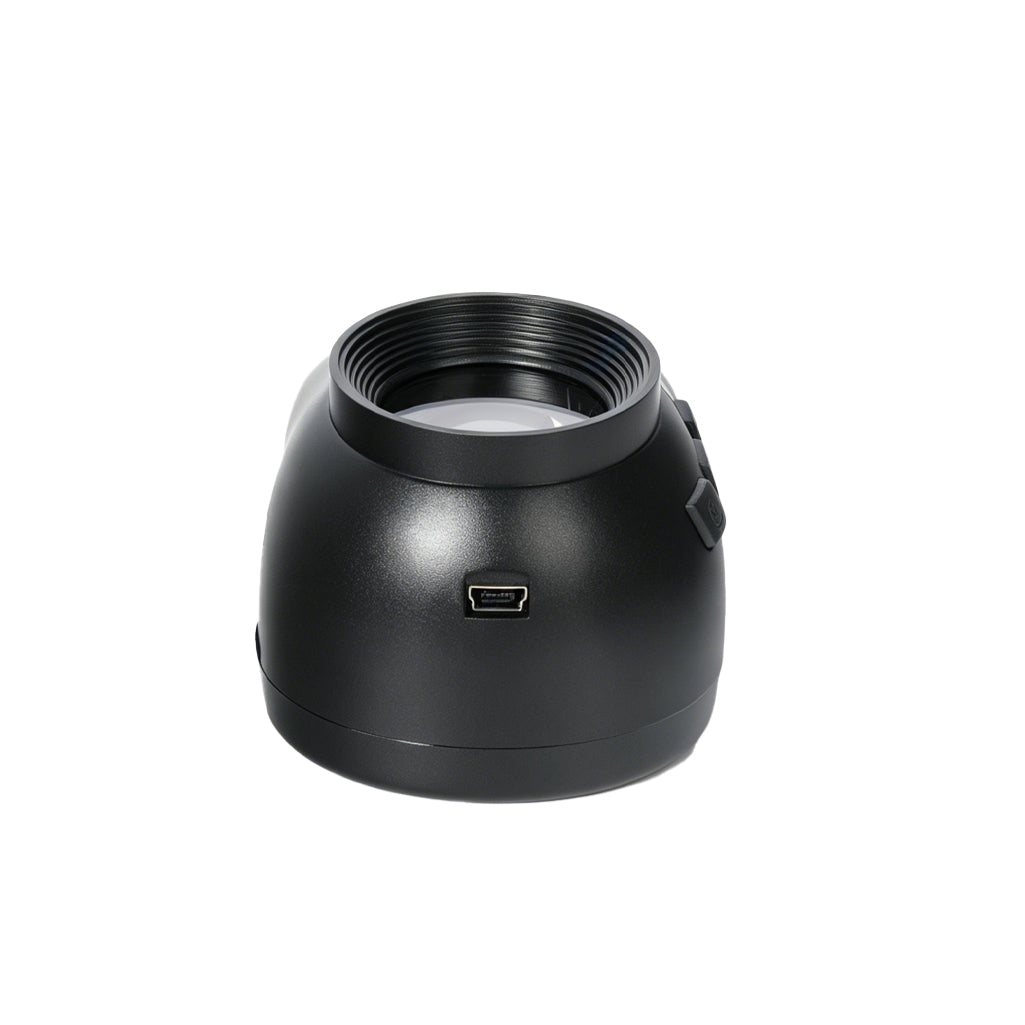

DK91016 Diamond Lighting Box | UV 254nm & 365nm Fluorescence Tester with White LED Lighting

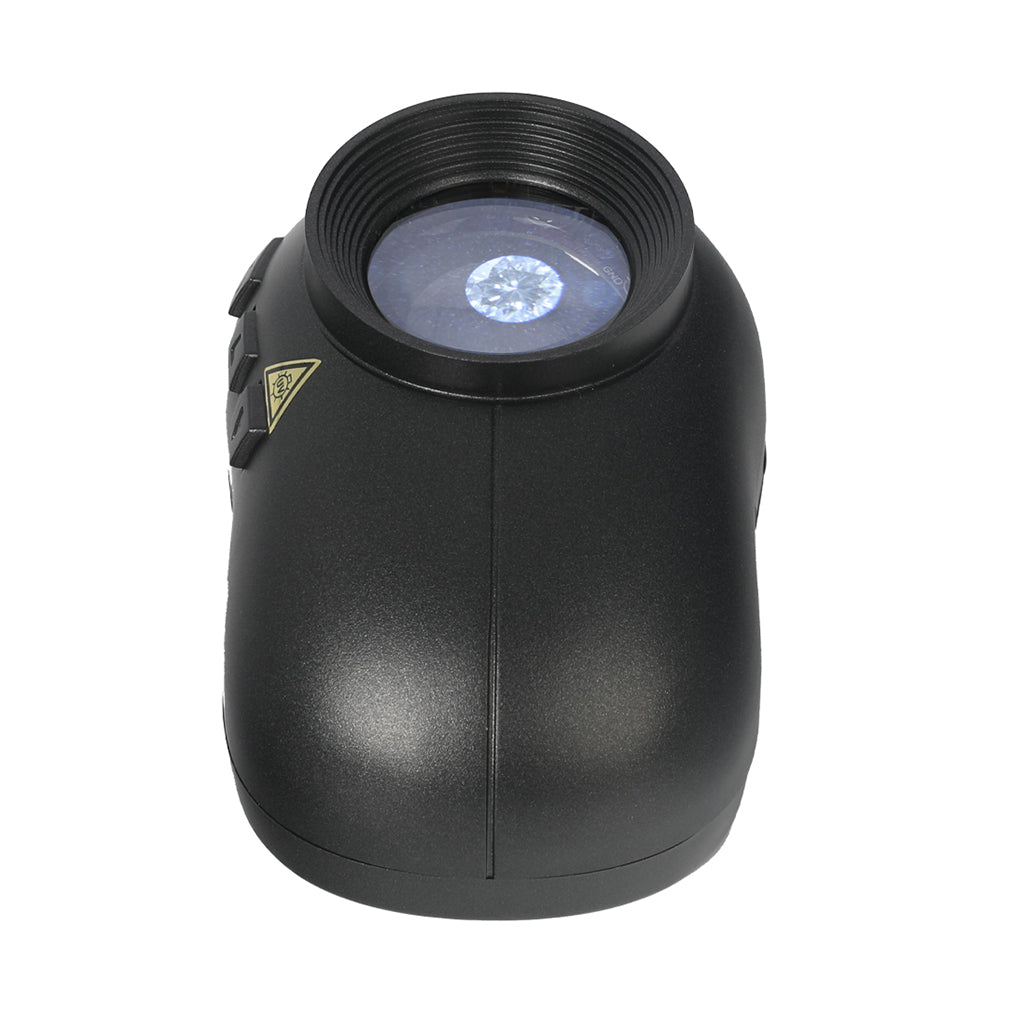

The DK91016 Diamond Lighting Box is a compact, professional gemological inspection instrument designed for accurate observation of diamonds and gemstones under controlled lighting conditions. It combines multiple white light modes with long-wave and short-wave UV fluorescence, making it an essential tool for gemologists, diamond graders, jewelers, and laboratories.
This lighting box provides reflected white light, side white light, top white light, and cross-cycle white illumination, allowing users to examine clarity, inclusions, cutting quality, and surface features. The integrated long-wave UV (365nm)and short-wave UV (254nm) enable reliable fluorescence testing, helping distinguish diamond characteristics and identify treatments or synthetic materials.
A built-in 10× magnification lens (30mm diameter) supports close inspection without the need for additional tools. The compact size and lightweight design make the DK91016 ideal for laboratory benches, retail counters, trade shows, and mobile gem testing. Powered by USB or AAA batteries, it offers flexibility for both stationary and portable use.
Designed with safety in mind, the short-wave UV function automatically switches off after two minutes to reduce exposure risks, ensuring safer operation in professional environments.
Product Specifications
- Item No.: DK91016
- Product Type: Diamond & gemstone lighting inspection box
-
Light Sources:
– Reflected white light
– White side light
– 90° intercrossed white light
– Long-wave UV (365nm)
– Short-wave UV (254nm) - Lens: 30mm diameter, 10× magnification
- Dimensions: 95 (L) × 65 (B) × 52 (W) mm

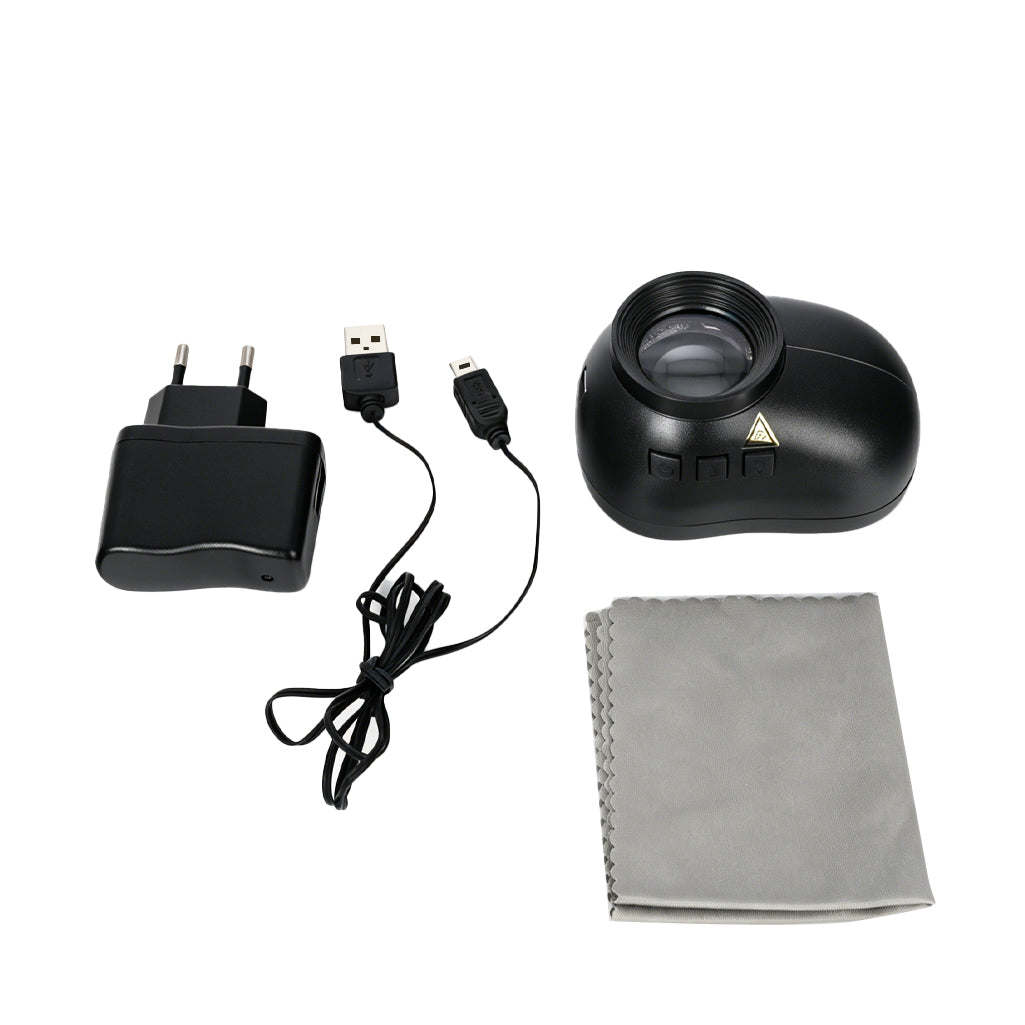

- Power Supply: DC 5.0–5.5V 1000mA via USB cable (supplied) or 3 × AAA batteries (not included)
- Weight: 110g (net)
- Controls: Power button with light selection switch
The DK91016 Diamond Lighting Box is a reliable, multi-light gemological tool that delivers professional-grade inspection, fluorescence testing, and accurate diamond evaluation in one compact unit.
SAFTEY WARNING:
The light of fluorescent tube (254nm) is extremely harmful to the eyes. When the fluorescent light is ON, never look from the bottom. Do not touch it either. The short wave UV will switch off automatically 2 minute after start up.
